Athena P40321032 Connecting Rod Kit Kawasaki KX80 KX85 1998-2023, KX100 98-2021

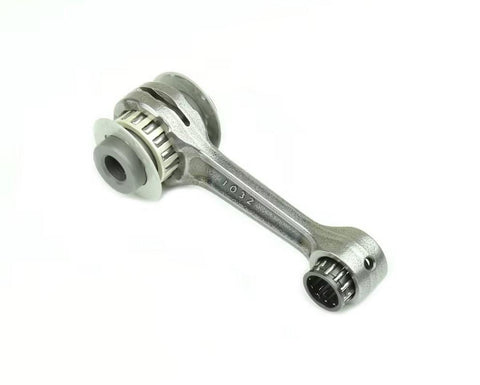

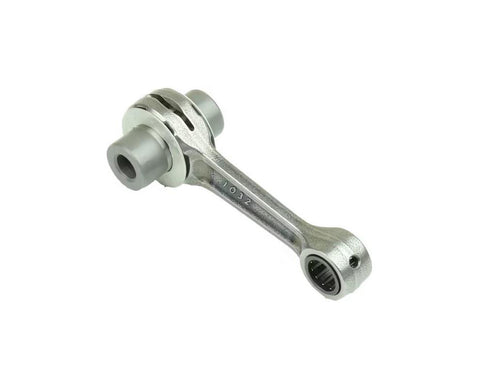

Athena P40321032 Connecting Rod Kit
Made in Japan
High-quality, lightweight connecting rods
Made with similar materials to the OEM component to ensure the same performance
Superficial high-frequency treatment for higher resistance that reduces rotational and alternating stresses

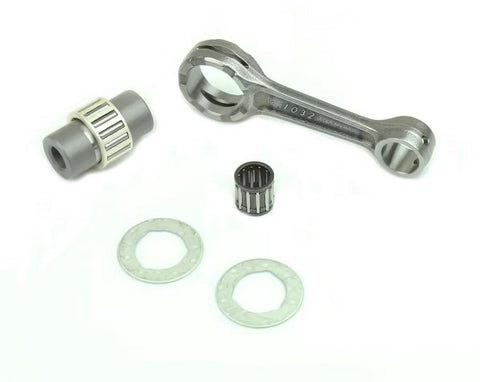

Kits include connecting rod, crank pin, big end bearing, (Small end bearing for 2 stroke models and shims also included where required)
Kawasaki KX100 1998-2021
Kawasaki KX80 1998-2000
Kawasaki KX85 2001-2023
Technical features
Big End Bore (mm) 29.00
Big End Pin Diameter (mm) 22.00
Big End Width (mm) 16.00
Center To Center (mm) 92.00
Net Weight (Kg) 0.29
Piston Pin Diameter (mm) 18.00
Small End Width (mm) 16.00
Washer Thickness (mm) 1.00
